Custom Clevises

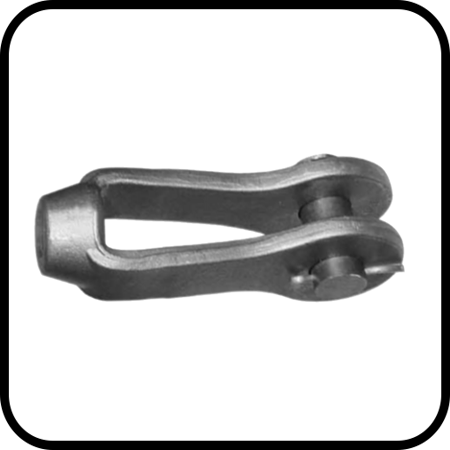

Clevises are U-shaped fasteners with holes at the prongs to accept a clevis pin, commonly used in rigging, tensioning, and structural support systems. They provide a strong, reliable connection point for rods, cables, or tie-downs in both static and dynamic applications.
Valley Nut & Bolt supplies custom clevises in various sizes and materials, including galvanized and stainless steel options, to meet the demands of construction, utility, and industrial projects.
Custom Clevises Modified to Your Specifications
Valley Nut & Bolt takes sourced clevis blanks and modifies them through drilling, tapping, gripping, and punching to customer specifications. This allows us to supply custom clevises sized and threaded to match your exact project requirements.
- #2 Clevises - up to 5/8-11 threads
- #2 1/2 Clevises - up to 7/8-9 threads
- #3 Clevises - up to 1 3/8-6 threads
Available in plain finish or Hot Dipped Galvanized
Larger sizes and stainless available through our manufacturing partners.
ASTM A668 and ASTM A473 Clevises
Clevises are manufactured to different ASTM forging specifications depending on the base material.
Carbon and alloy steel clevises are forged per ASTM A668, a general specification covering untreated and heat-treated carbon and alloy steel forgings for general industrial use. ASTM A668 includes multiple classes (Class A through Class F), which vary by strength and heat treatment level.
Stainless steel clevises are forged per ASTM A473, the specification covering stainless steel forgings for corrosion-resistant and high-temperature service. Stainless clevises are available through our manufacturing partners for projects requiring added corrosion resistance in marine, wastewater, or outdoor infrastructure applications.
Custom Clevis Pins
Custom clevis pins are supplied to pair with our clevises and are available in straight or headed configurations. Straight pins run through both clevis ends with a cotter pin securing each end, while headed pins have a fixed head on one end and a single cotter pin on the opposite end. Clevis pins are available in steel and stainless steel material options, with finish choices including plain, galvanized, and plated. Contact Valley Nut & Bolt for clevis pin sizing and material availability for your project.
What is the difference between an ASTM A668 clevis and an ASTM A473 clevis?
ASTM A668 covers carbon and alloy steel forgings, and is the specification used for carbon and alloy steel clevises. ASTM A473 covers stainless steel forgings, and is the specification used for stainless steel clevises.
What sizes of custom clevises does Valley Nut & Bolt supply?
Valley Nut & Bolt modifies clevis blanks in #2 (up to 5/8-11 threads), #2 1/2 (up to 7/8-9 threads), and #3 (up to 1 3/8-6 threads) sizes. Larger sizes and stainless steel clevises are available through our manufacturing partners.
What finish options are available for custom clevises?
Standard clevises are available in plain finish or Hot Dipped Galvanized. Stainless steel finish options are available through our manufacturing partners.
What is a clevis pin used for?
A clevis pin is inserted through the holes in a clevis to create a pinned connection point for rods, cables, or tie-downs. Clevis pins are available in straight or headed configurations, secured with cotter pins.
What material options are available for custom clevis pins?
Custom clevis pins are available in steel and stainless steel, with finish options including plain, galvanized, and plated.
Can Valley Nut & Bolt modify clevises to custom specifications?
Yes. Valley Nut & Bolt takes sourced clevis blanks and modifies them through drilling, tapping, gripping, and punching to customer specifications.
Industries Served
- Construction
- Heavy Industrial
- Infrastructure
- Manufacturing
- Government
- Marine
